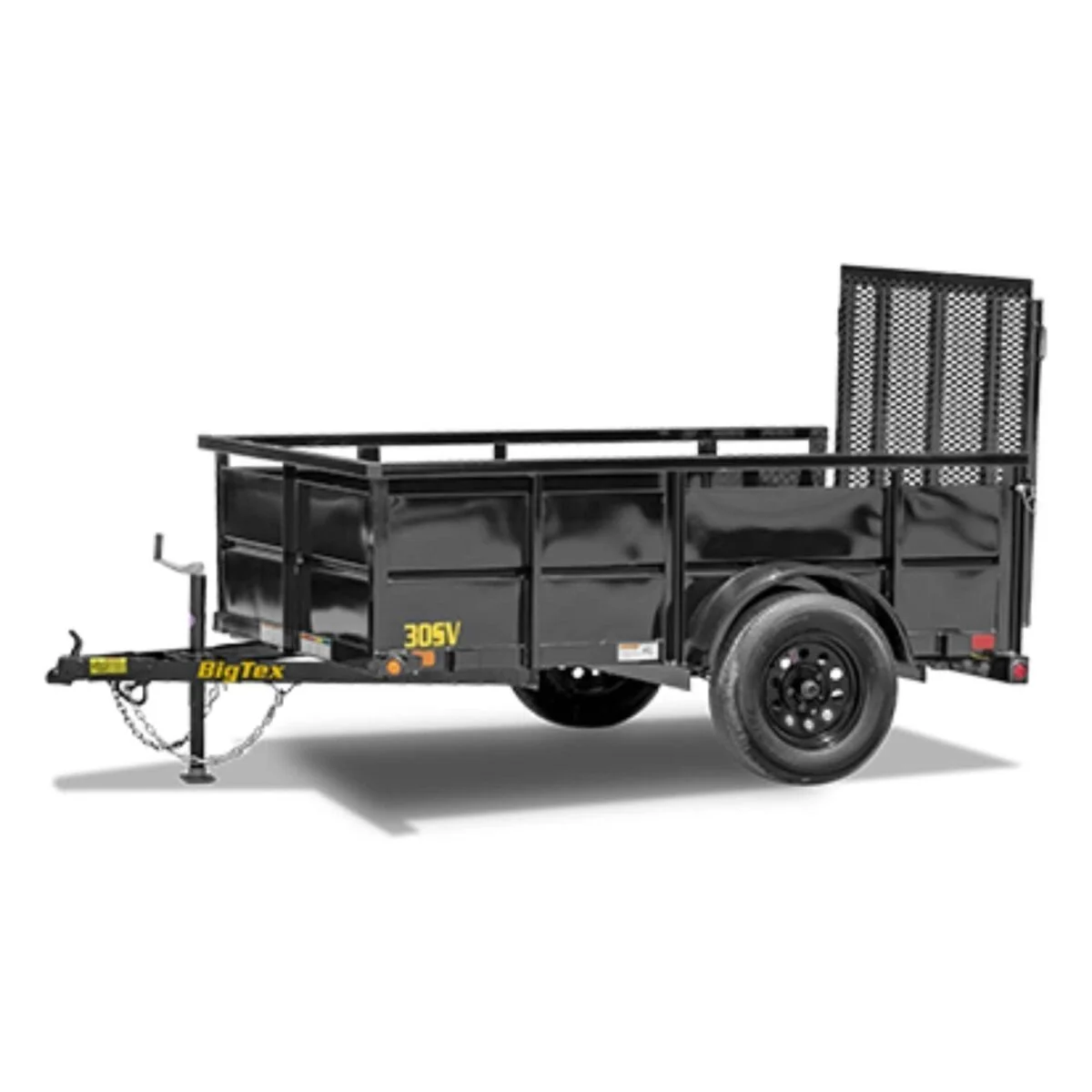

Big Tex 30SV Single Axle Vanguard Utility Trailer – Heavy-Duty Cargo & Equipment Trailer | TSH1

When it’s time to work, it’s time for the Big Tex 30SV Single Axle Vanguard Trailer. Built strong for landscaping professionals and equipment hauling, the 30SV features 28-1/2″ tall sides, 24″ V-crimped steel panels, a 2″ × 2″ square-tube top rail, and a durable treated wood floor to help protect cargo and keep equipment secure from job to job.

For even greater hauling versatility, an optional 4′ or 5′ rear ramp gate with coil-spring assist makes loading wheeled equipment easier and allows the trailer to transport a variety of vehicles and recreational equipment, including golf carts, ATVs, side-by-sides, and more.

Key Features

• Single Axle Design – Designed for landscaping, equipment, and general cargo hauling.
• 3,500 lb Premium Cambered Axle – Equipped with quick-lubricating hubs.
• 2″ Forged Demco EZ Latch Coupler – Provides secure bumper-pull connection.
• 28-1/2″ Tall Sides – Helps contain and protect landscaping materials and equipment.
• 24″ V-Crimped Steel Side Panels – 16-gauge steel construction.
• 2″ × 2″ Square Tubing Top Rail – Adds structure and helps secure cargo.
• Treated Pine or Douglas Fir Floor – Durable wood decking for equipment hauling.
• LED DOT Lighting – Includes stop, tail, turn, and clearance lights.
• 4-Way Flat Trailer Plug – Wiring is protected with loom.
• Tie-Down Loops – Four standard interior tie-down loops help secure equipment.
• Rolled-Formed Fenders – 9″ × 32″ fenders with back.
• Safety Chains – Two 1/4″ Grade 30 chains with safety latch hooks.
• 2,000 lb Top-Wind Set-Back Jack – Provides convenient trailer support.
• ST205/75 R-15 Load Range C Tires – 5-bolt wheel pattern.
• Professional Finish with Primer – Standard black finish.
• Optional Rear Ramp Gate – Available in 4′ or 5′ tall configurations with coil-spring assist.
• Optional Landscape Box – Bolt-on 24″ × 24″ × 64-1/2″ storage box.
• Optional Electric Brakes – Available with complete break-away kit.
• Optional Spare Tire Mount & Spare Tire – Available as options.

Available Options

• Electric brakes with complete break-away kit
• 4′ tall rear ramp gate with coil-spring assist
• 5′ tall rear ramp gate with coil-spring assist
• Additional stake pockets
• Additional tie-down loops
• Blackwood Pro rubber-infused lumber floor
• Fold-up jack
• Bolt-on landscape storage box
• Side spare tire mount
• Spare tire
• Multiple paint colors

Model Specifications

Dimensions

30SV-08

• Bed Length: 10′
• Bed Width: 60″
• Dimension A: 97-1/2″
• Dimension B: 61″
• Dimension C: 36-1/2″
• Tongue Length: 36-1/8″

30SV-10

• Bed Length: 12′
• Bed Width: 60″
• Dimension A: 121-1/2″
• Dimension B: 73″
• Dimension C: 48-1/2″
• Tongue Length: 36-1/8″

30SV-12

• Bed Length: 14′
• Bed Width: 60″
• Dimension A: 145-1/2″
• Dimension B: 85″
• Dimension C: 60-1/2″
• Tongue Length: 36-1/8″

Standard Equipment

• 3,500 lb premium cambered axle with quick-lubricating hubs
• Brake flanges for easy brake addition
• Multi-leaf slipper spring suspension
• Demco EZ Latch 2″ forged coupler
• Grade 30 safety chains
• 2,000 lb top-wind set-back jack
• 3″ × 2″ × 3/16″ angle cross-members
• Treated Pine or Douglas Fir floor
• 9″ × 32″ rolled-formed fenders
• 4-way flat trailer plug with loom
• Lifetime LED lighting
• ST205/75 R-15 Load Range C tires
• 4 interior tie-down loops
• 28-1/2″ tall sides with 24″ V-crimped steel panels
• 2″ × 2″ square-tube top rail
• Professional finish with primer

Ideal For

The Big Tex 30SV is well suited for:

• Landscaping equipment
• Lawn care equipment
• Construction equipment
• Golf carts
• ATVs
• Side-by-side UTVs
• General cargo hauling
• Commercial and residential equipment transport

Why Choose the Big Tex 30SV?

The Big Tex 30SV Vanguard Trailer combines a durable steel-sided design, wood decking, secure tie-down points, LED lighting, and a strong single-axle platform for everyday hauling. With multiple bed-length configurations and optional ramp gates, brakes, storage, and spare-tire equipment, it can be configured to meet a wide range of landscaping and equipment-transport needs.
